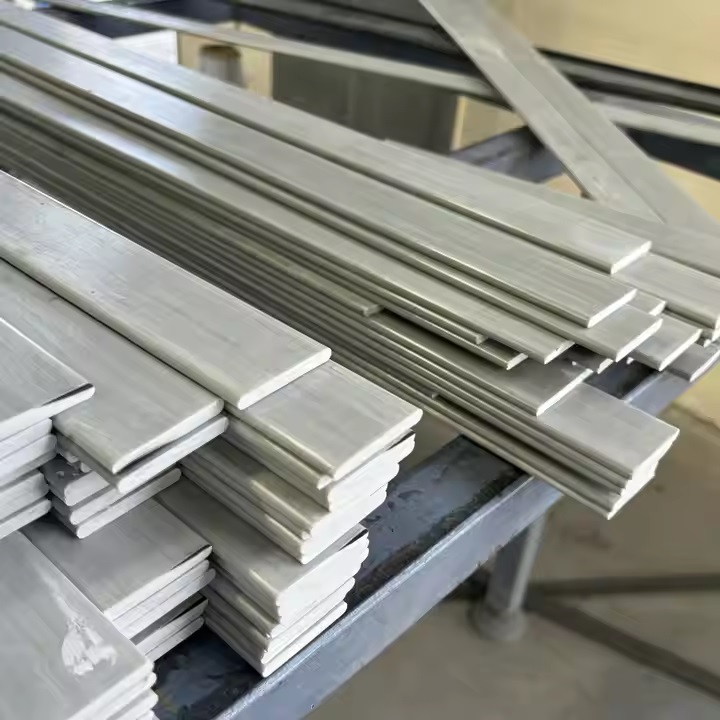

Fiberglass Strips
Jmfrp is a leading fiberglass strip manufacturer that delivers high–performance, flexible, and lightweight solutions for a variety of industrial and custom applications.
Why Choose Us?
- Lightweight and High Strength: Fiberglass has a density of only 1/4 that of steel with the same volume, yet its tensile strength can reach over 450MPa, and high-strength types can exceed 1400MPa, far surpassing ordinary steel.
- Excellent Corrosion Resistance: Fiberglass strips are highly resistant to various chemicals and do not oxidize, making them ideal for corrosive environments.
- Easy to Process, Non-Magnetic: Fiberglass is a non-conductive and non-magnetic insulating material. It is easy to cut and shape into various forms, making on-site construction more convenient.
- Easy Installation and Cost-Effective: Available in different sizes and customizable upon request, fiberglass strips are a cost-effective solution that helps reduce overall project costs.
- Eco-Friendly and Energy-Saving: The production and use of fiberglass have minimal environmental impact, meeting modern building standards for ecological protection and energy efficiency.
JMFRP Customization Services
JMFRP offers professional fiberglass strip customization services, including:

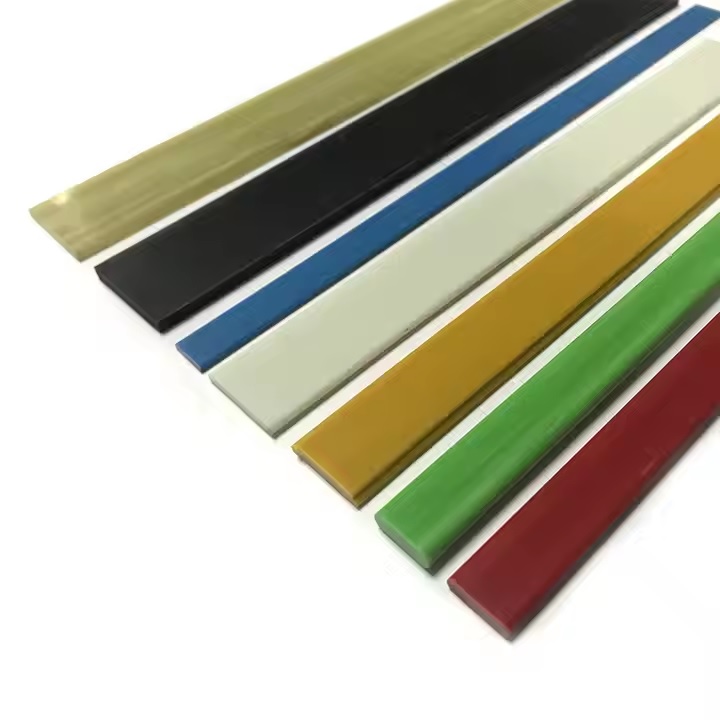

Color and Size Customization: We can tailor the color and size to meet specific application requirements.
Precision Processing: Options include drilling, milling, and silk-screen printing to accommodate specialized uses.
Material Optimization: We provide fiberglass strips with enhanced strength, corrosion resistance, or other functional properties based on the intended application.
Applications of Fiberglass Strips
Fiberglass strips have a wide range of applications across various industries:
Construction Industry: Used in building structures, decorative elements, fiberglass panels, and solar energy devices, providing lightweight yet strong material solutions.
Chemical Industry: Ideal for making corrosion-resistant pipelines, sewage treatment equipment, ventilation systems, and industrial grating.
Automotive and Railway Transportation: Applied in vehicle body panels, bus doors, dashboards, and interior components, contributing to durability and weight reduction.
Sports and Outdoor Equipment: Used for tent poles, bounce poles, kites, ski poles, fitness rings, and more, offering high strength and flexibility.
Household Products: Commonly found in fiberglass plant pots, appliance casings, safety helmets, and other durable consumer goods.
Technical Specifications (Sample Data, Subject to Calibration)
The fiberglass strips use different resin parameters to meet the demand for working conditions.
| Properties | Unit | Index Value |
|---|---|---|
| Density | g/cm3 | 1.8~1.9 |
| Water Absorption | mg | ≤20 |
| Distortion Temperature | ℃ | ≥240 |
| Impact Strength | KJ/M2 | ≥90 |
| Flexural Strength | MPa | ≥200 |
| Compressive Strength | MPa | ≥200 |
| Insulation Resistance (ordinary state) | Ω | ≥1.0×1012 |
| Insulation Resistance (Immersion in water) | Ω | ≥1.0×1011 |
| Electric strength (in 900°c transformer oil) | KV/mm | ≥10 |
| Arc Resistance | S | ≥180 |
| PTI | V | ≥600 |
| Combustibility | Grade | FVO |
| Thermal Index | ℃ | 180 |
| Size | Specification (mm) | Weight (g/m) |
|---|---|---|
Specification: A×t | 25.4×6.35 | 306 |
| 30×6 | 342 | |
| 30×10 | 570 | |
| 40×6 | 456 | |
| 54×2.5 | 257 | |
| 50×3 | 285 | |
| 110×6 | 1254 | |
| 120×10 | 2280 | |
| 130×10 | 2470 | |
| 140×12.5 | 3325 | |
| 220×10 | 4180 | |
| 228×12.5 | 5415 | |
| 300×3.5 | 1995 | |
| 550×12 | 12540 |
Frequently Asked Questions
A: GFRP excels in high-tensile, corrosive, or EMI-sensitive applications. Consult engineers for ultra-high compression scenarios.
A: Fiberglass materials have an extremely low water absorption rate (≤20mg), making them suitable for long-term use in humid environments.
A: Yes, we provide customization services such as size adjustments, drilling, milling, and surface printing to meet specific needs.
A: Fiberglass has an insulation resistance of ≥1.0×10¹²Ω under normal conditions and ≥1.0×10¹¹Ω when immersed in water, and its electrical strength is≥10KV/mm, making it ideal for insulation applications.
A: You can order through our website or contact our sales team with your specifications. We will provide the best solution for your needs.
