Professional Grade Fiberglass Beams

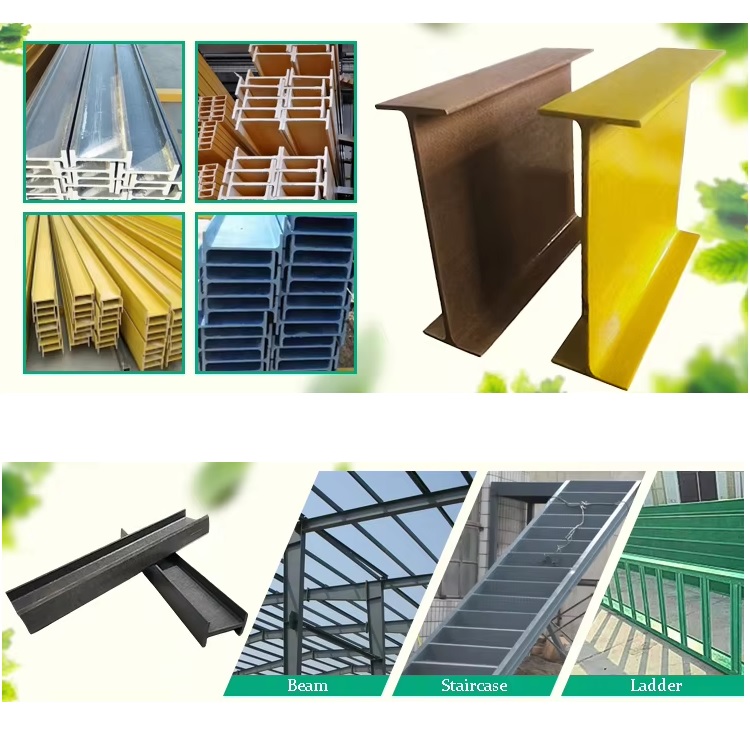

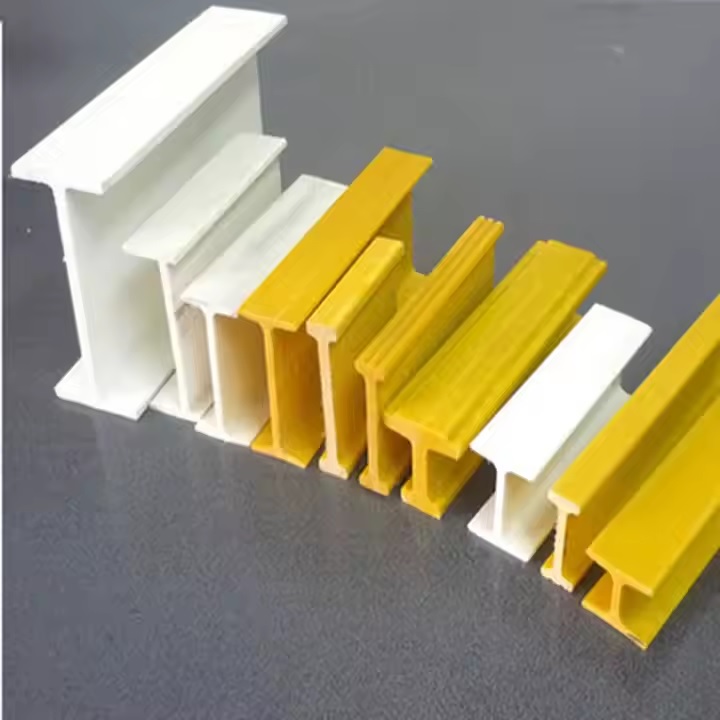

JMFRP offers high-performance, eco-friendly fiberglass beams manufactured through an advanced pultrusion process. Our beams are engineered to be super strong, lightweight, and dimensionally stable. They never rot, rust, or corrode and are flame retardant, non-conductive, and virtually maintenance-free. Available in various shapes—including I-beams and H-beams—and colors such as yellow, green, blue, black, white, or customized options, these beams are designed to exceed modern engineering demands.
Why Choose Us?

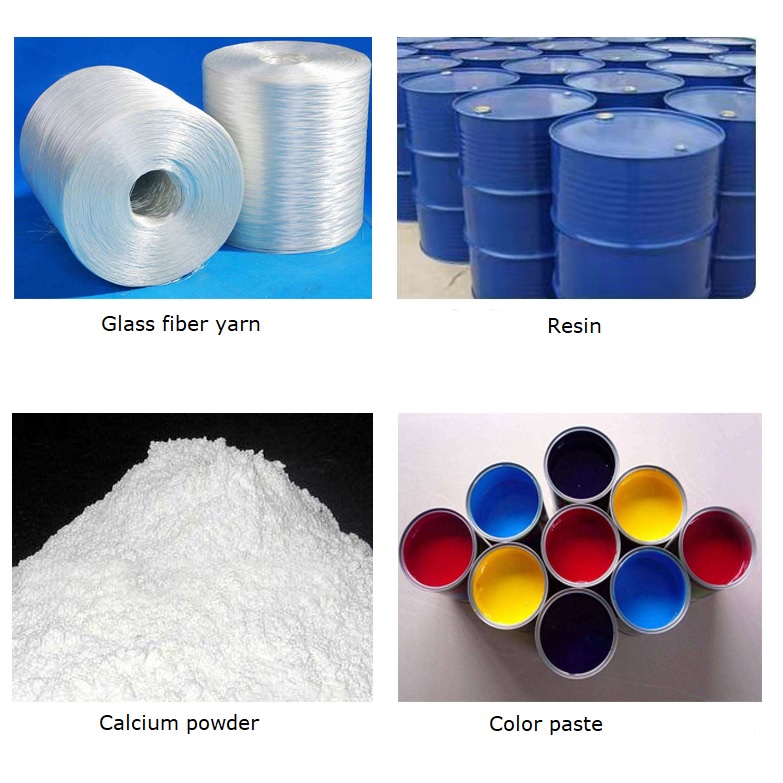

- Unmatched Quality & Technology: Our beams are engineered with state-of-the-art pultrusion technology using eco-friendly resins and high-grade glass fiber, ensuring superior strength and durability.
- Tailored Customization: We offer extensive customization options for size, shape, and color, providing solutions that are precisely tailored to your project needs.
- Lightweight & Easy Installation: Designed for ease of transport and installation, our lightweight beams help reduce labor and logistics costs significantly.
- Exceptional Durability: Engineered to never rot, rust, or corrode, our beams are built to withstand harsh environments while offering fire-retardant and non-conductive properties for enhanced safety.
- Comprehensive Support & Reliability: With robust technical support and a commitment to quality, we ensure reliable performance and long-term value for every project.
JMFRP's Customized Services
At JMFRP, we understand that every project is unique. We offer comprehensive customization options—tailoring dimensions, weight, shape, and color to meet your specific requirements. Whether you need standard sizes or bespoke designs, our experienced engineering team is ready to provide personalized solutions that perfectly match your project needs.
| H/I Beams | Width (mm) | Height (mm) | Thickness (mm) | Weight(kg/m) |
|---|---|---|---|---|
 | 15 | 30 | 4 | 0.445 |
| 24 | 50 | 4 | 0.681 | |
| 75 | 75 | 6 | 1.988 | |
| 38 | 80 | 6 | 1.833 | |
| 50 | 100 | 8 | 2.723 | |
| 75 | 150 | 8 | 3.955 | |
| 100 | 150 | 8 | 4.266 | |
| 150 | 150 | 10 | 6.792 |
Technical Specifications (Sample Data, Subject to Calibration)
The fiberglass grating uses different resin parameters to meet the demand for working conditions.
| Resin Type | Resin Material | Description | Corrosion Resistance | Flame Spread Rating ASTM E84 | Available colors | Max. Oper. Temp. |
|---|---|---|---|---|---|---|
| Type VEFR-20 | Vinyl Ester | Superior Corrosion Resistance and Fire Retardant | Excellent | Class 1, 20 or less | Dark Gray, Orange | 230℃ |
| Type IFR-25 | Isophthalic Polyester | Industrial Grade Corrosion Resistance and Fire Retardant | Very Good | Class 1, 25 or less | Dark Gray, Green | 221℃ |
| Type FG-20 | Isophthalic Polyester | Food Grade Corrosion Resistance and Fire Retardant | Very Good | Class 1, 20 or less | Light Gray, Light Green | 221℃ |
| Type CFR-25 | Orthophthalic Polyester | Moderate Corrosion Resistance and Fire Retardant | Moderate | Class 1, 25 or less | Green Yellow Light Gray Dark Gray | 212℃ |
| Type MP-4 | Phenolic | Low Smoke and Superior Fire Resistance | Very Good | Class 1, 5 or less | Reddish-Brown | 356℃ |
| Type IFR-10 | Isophthalic Polyester | Industrial Grade Corrosion Resistance and Extra Fire Retardant | Very Good | Class 1, 10 or less | Customize | 221℃ |

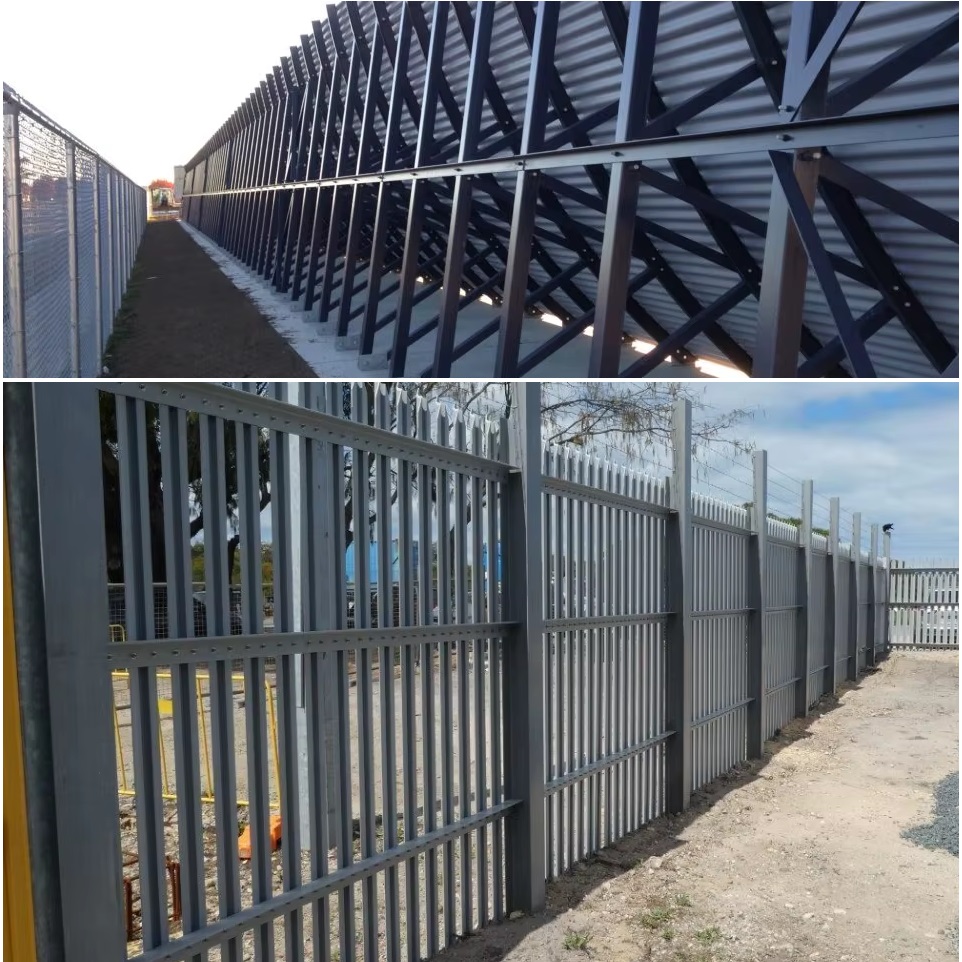

Fiberglass Beam Applications
Our fiberglass beams are versatile and find application across various industries:
- Automotive Service Centers: Ideal for constructing durable, low-maintenance car washing platforms.
- Agriculture: Perfect for livestock and poultry farms to build hollow ground boards that efficiently remove dirt and waste.
- Industrial Facilities: Used in walkways, stairs, and structural components in solar power plants, factories, industrial towers, and furnaces due to their resistance to high temperatures and voltage fluctuations.
- Corrosive Environments: Suitable for sewage treatment plants, chemical factories, smelters, coastal defense projects, paper mills, and liquefied gas plants.
- Specialized Buildings: Excellent for projects requiring low electromagnetic interference or effective wave transmission, such as military installations, hospitals, and telecommunication facilities.
Fibergalss Beam size
| Size | Specification (mm) | Weight (g/m) |
|---|---|---|
| Specification: A×B×t A×t1×B×t2  | 30×15×4 | 395 |
| 50×24×4 | 684 | |
| 80×38×7 | 1889 | |
| 100×50×8 | 2797 | |
| 150×75×8 | 4317 | |
| 150×100×8 | 5077 | |
| 150×125×9.5 | 6877 | |
| 190×125×10 | 7980 | |
| 250×125×12×10 | 9994 |
| Size | Specification (mm) | Weight (g/m) |
|---|---|---|
Specification: A×B×t | 75×75×6 | 2428 |
| 150×150×10 | 8170 | |
| 100×100×6.35 | 3466 | |
| 140×140×10 | 7600 | |
| 152×152×6.35 | 5348 | |
| 152×152×9.53 | 7912 | |
| 254×254×10 | 14098 |
| Size | Specification (mm) | Weight (g/m) |
|---|---|---|
Specification: A×B×t | 54×45×6 | 1060 |
| 62×46×10 | 1862 | |
| 52×50×6 | 1094 | |
| 52×55×6 | 1151 | |
| 52×60×6 | 1208 | |
| 140×80×10 | 3990 |
| Size | Specification (mm) | Weight (g/m) |
|---|---|---|
| Specification: A×B×t A×t1×B×t2  | 50×25×8 | 1277 |
| 50×30×3 | 593 | |
| 60×40×5 | 1235 | |
| 75×32×5 | 1226 | |
| 100×50×5 | 1805 | |
| 140×80×10 | 5320 | |
| 150×40×10 | 3990 | |
| 150×60×10 | 4750 | |
| 180×50×8 | 4013 |
Frequently Asked Questions
A: 100% of our products will be tested before delivery. To control quality, we are using high quality material from high
quality supplier.
A:We are a manufacturing factory with export qualifications. Our factory is one of the Best FRP products manufacturer in China since 2009.
A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is kindly offer your shipping air-express account.
A: Yes. With experienced teams in fiberglass product design and manufacturing, we can provide customized shape,dimension,
colors service.
- Confirm the CAD drawing according to the buyer’s requirement.
- Offer and confirm purchasing invoice after discussion by two joint parties.
- Start mold manufacturing after 50% TT in adv. (100% TT for mold tool manufacturing cost)
- The samples are sent for testing.
- Production of the whole order starts upon receiving sample approvement from the buyer.
- Products are sent out after the balance payment.
